Wordpress 3D Printing

Woo powered 3D Printing plugin

Turn your WordPress/WooCommerce website into a platform for selling 3D printing services with this powerful plugin. It's an ideal solution for a small to medium business. Start selling your 3D printing service today!

Try Demo Buy Now Christmas sale, 50% off!

Features

Technologies supported: FDM/FFF, DLP, SLA, Laser Cutting
WooCommerce integration.
Bulk upload mode (demo).
Form builder (NinjaForms integration).
File Manager.
Supported file types: STL (bin, ascii), OBJ (including texture support), STP, IGES (STP and IGES models get converted to STL), DXF (2D), SVG, EPS, PDF, ZIP.
Image printing: JPG, PNG, GIF, BMP files get converted to STL. (Works best with high contrast images such as logos)
Print time, infill, support material calculation (Optional, monthly or an annual subscription is required).
Several slicers to choose from (Prusa Slicer, Cura, Slic3r)
Ability to add predefined models to products.
Model scaling (can scale axis independently).
Model repair (through slic3r).
Model position optimization (automatically rotates the model to optimize the 3D printing process).
MakePrintable addon.
Manual model rotation.
Several attribute layouts.
Fullscreen mode.
Configurable printers, materials, coatings, post-processing.
Transparent and glowing materials.
Filament price calculator.
Large file upload support (upload chunking).
Customizable pricing: can be configured to charge per model weight, material volume, support material volume, bounding box volume or per hour (monthly or an annual subscription is required for charging per hour). Different price rates for different amount of material/volume.
Extra price fields.
Ability to get a quote by email (email contains Buy Now link).
Checkout options:
- Price calculation and instant checkout
- Estimated price and "request price" button
- Only "request price" button
Price request manager
Email template manager.
Translation ready
Multi Currency for WooCommerce and WPML multi currency support
Custom attributes support
Responsive layout
Browser support: works best with WebGL enabled browsers

Requirements

WordPress 4+
WooCommerce 3.0+

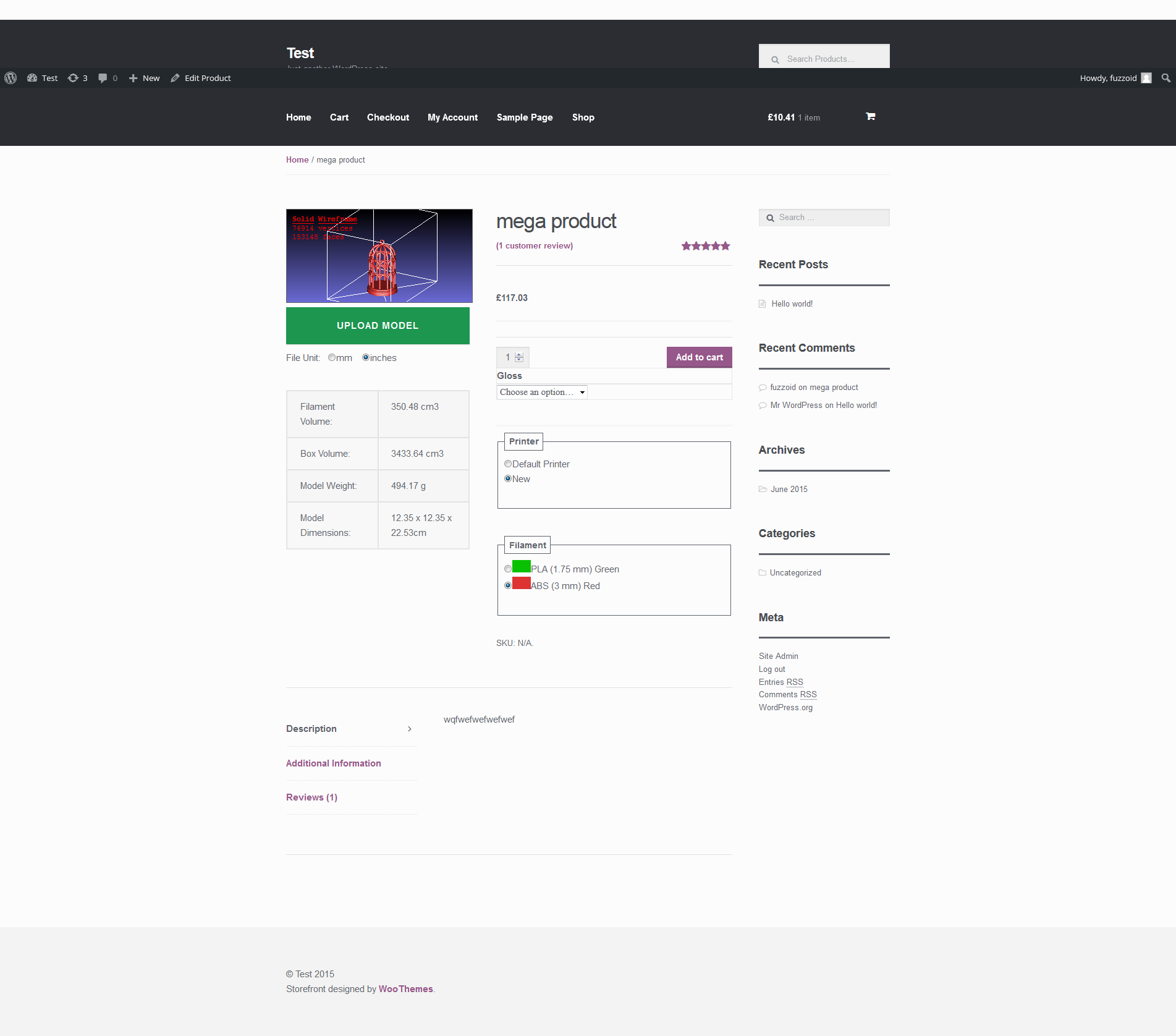

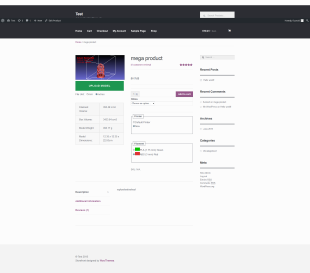

Wordpress 3D Printing frontend product with enabled Checkout option

Frontend

Wordpress 3D Printing product with enabled Checkout option.

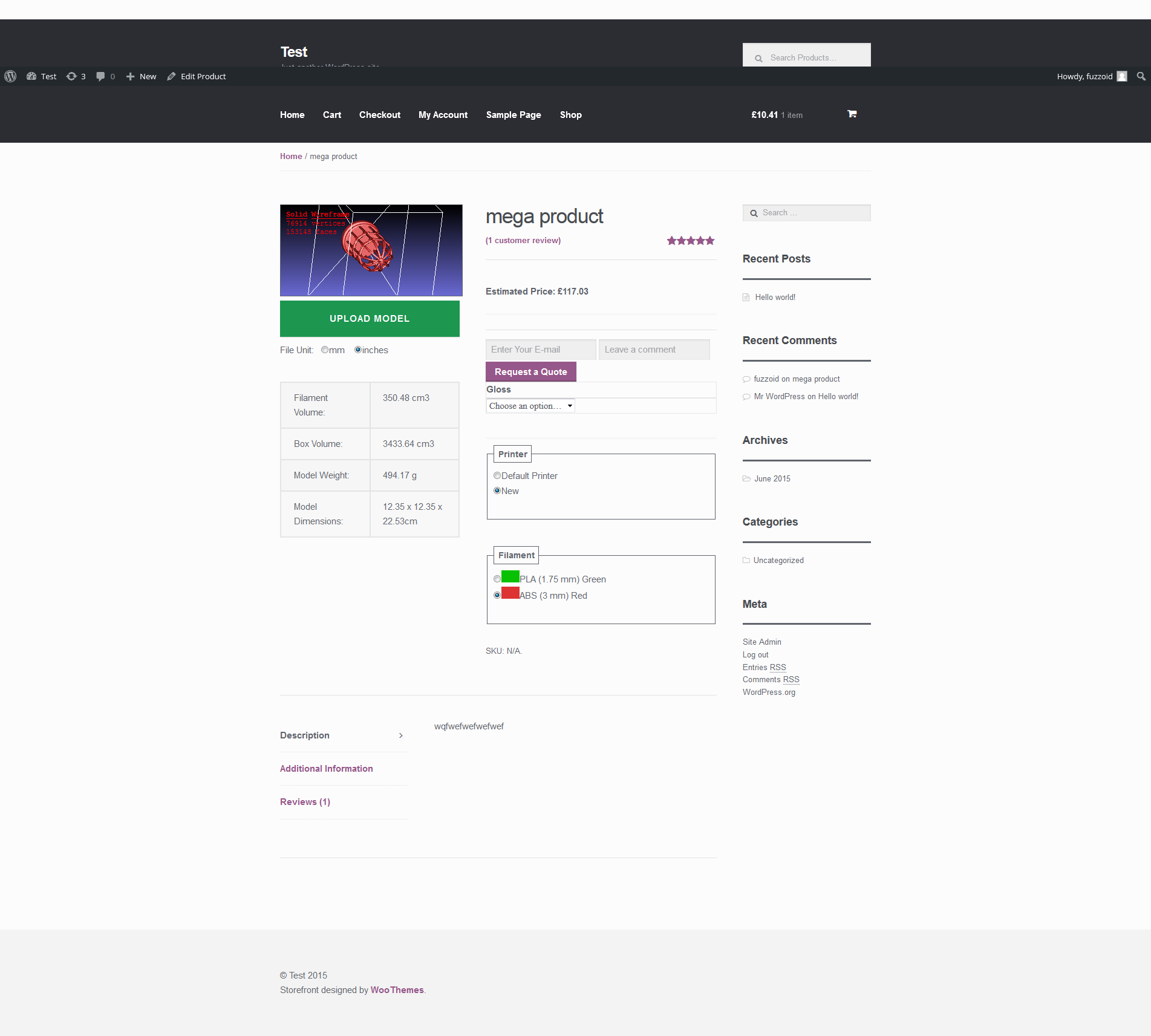

Wordpress 3D Printing product with enabled Give an estimate and request price.

Frontend

Wordpress 3D Printing product with enabled "Give an estimate and request price" option.

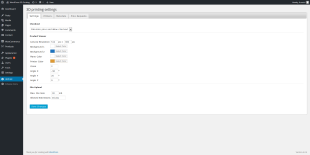

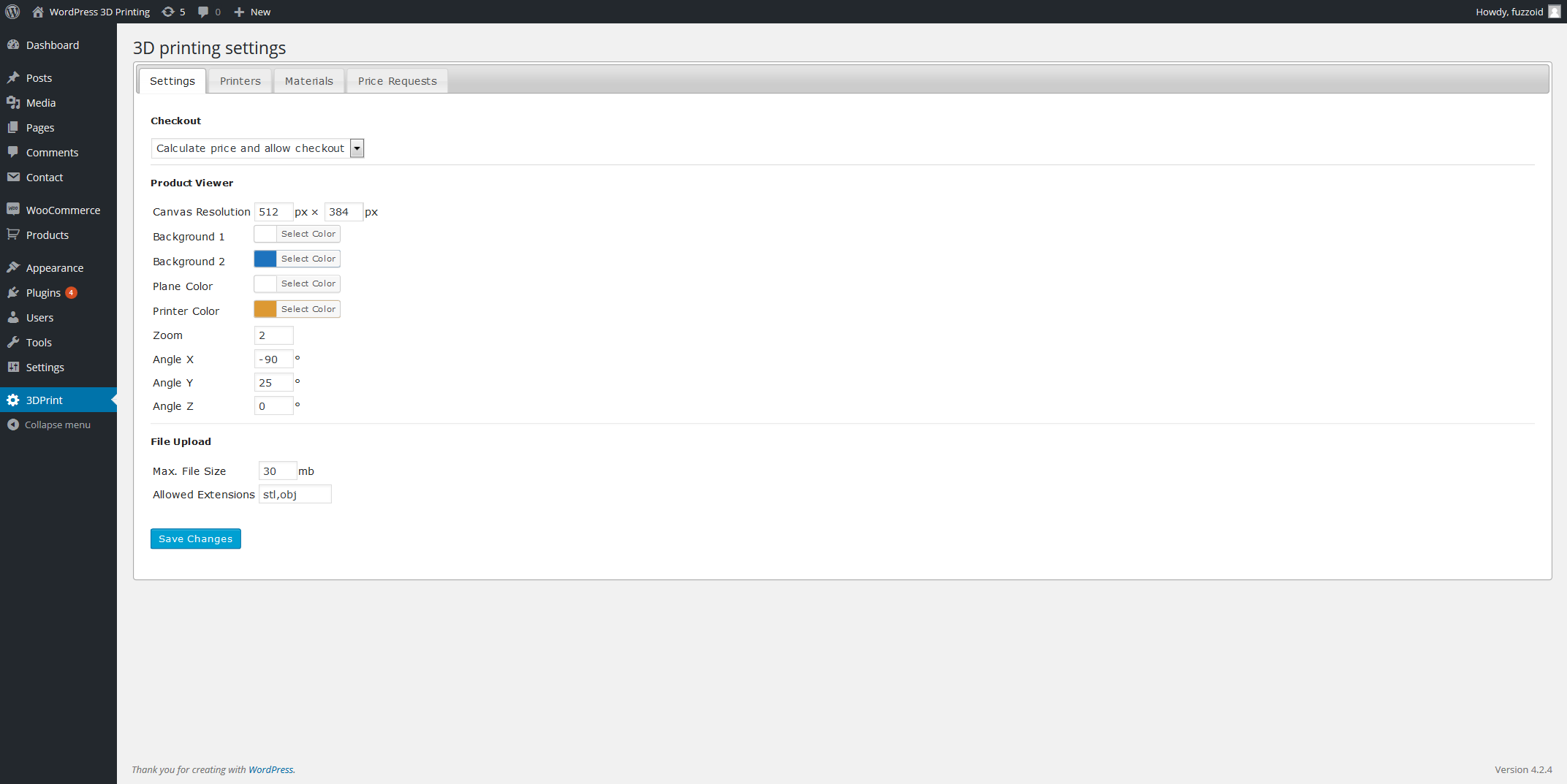

Wordpress 3D Printing Backend: main settings

Backend

Wordpress 3D Printing Backend: main settings page.

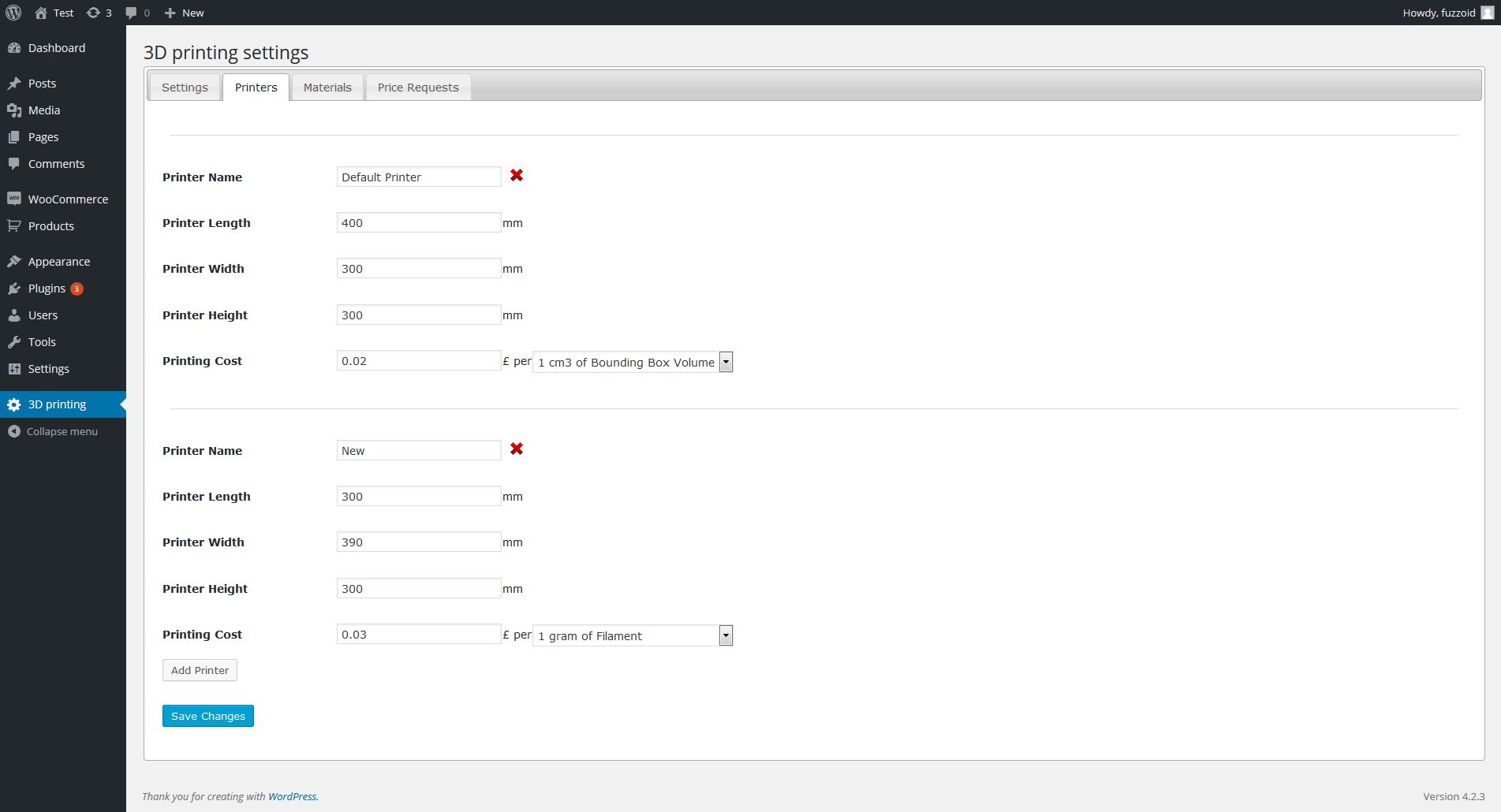

Wordpress 3D Printing Backend: printer settings

Backend

Wordpress 3D Printing Backend: printers settings page.

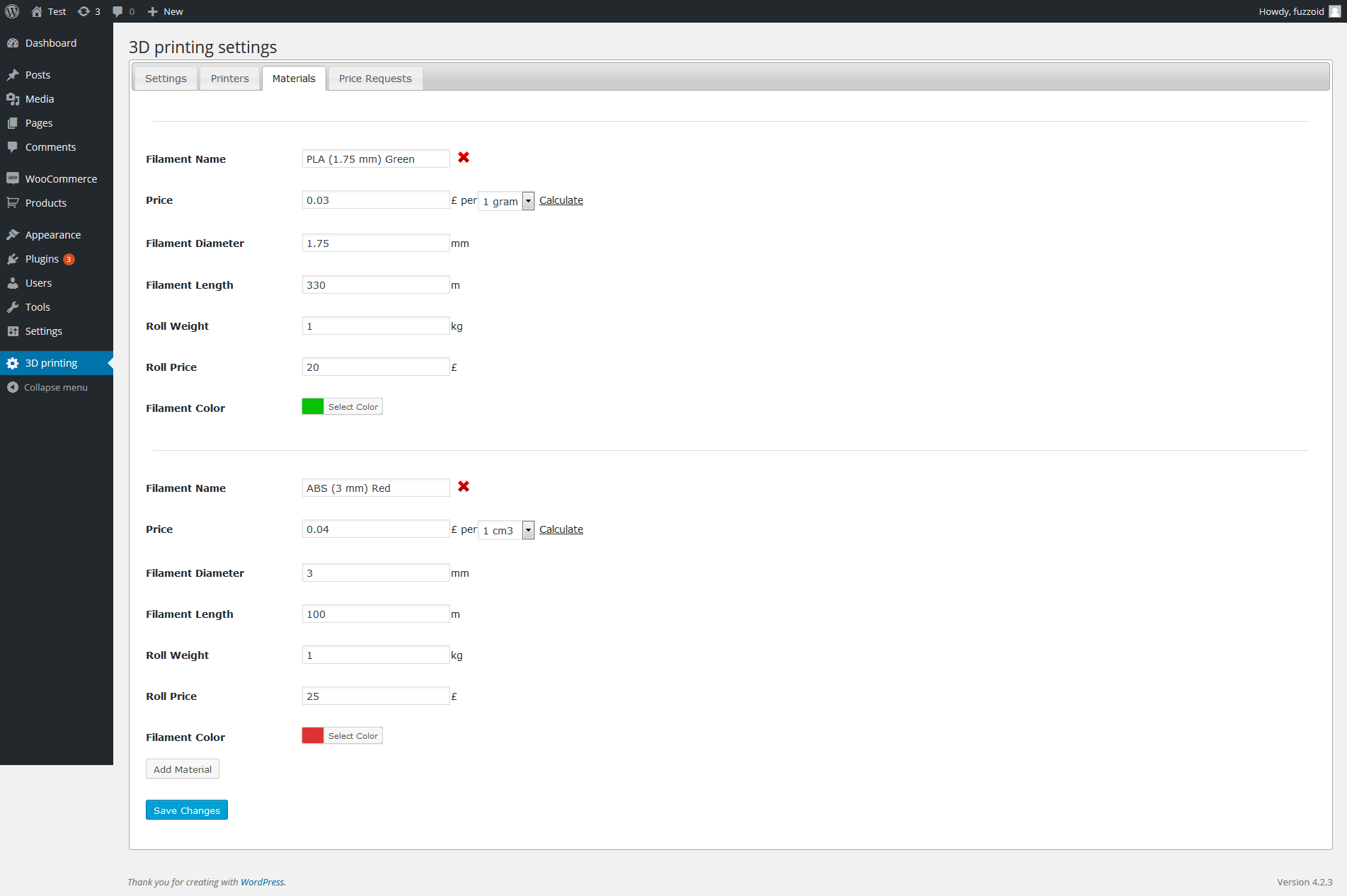

Wordpress 3D Printing Backend: materials settings

Backend

Wordpress 3D Printing Backend: materials settings page.

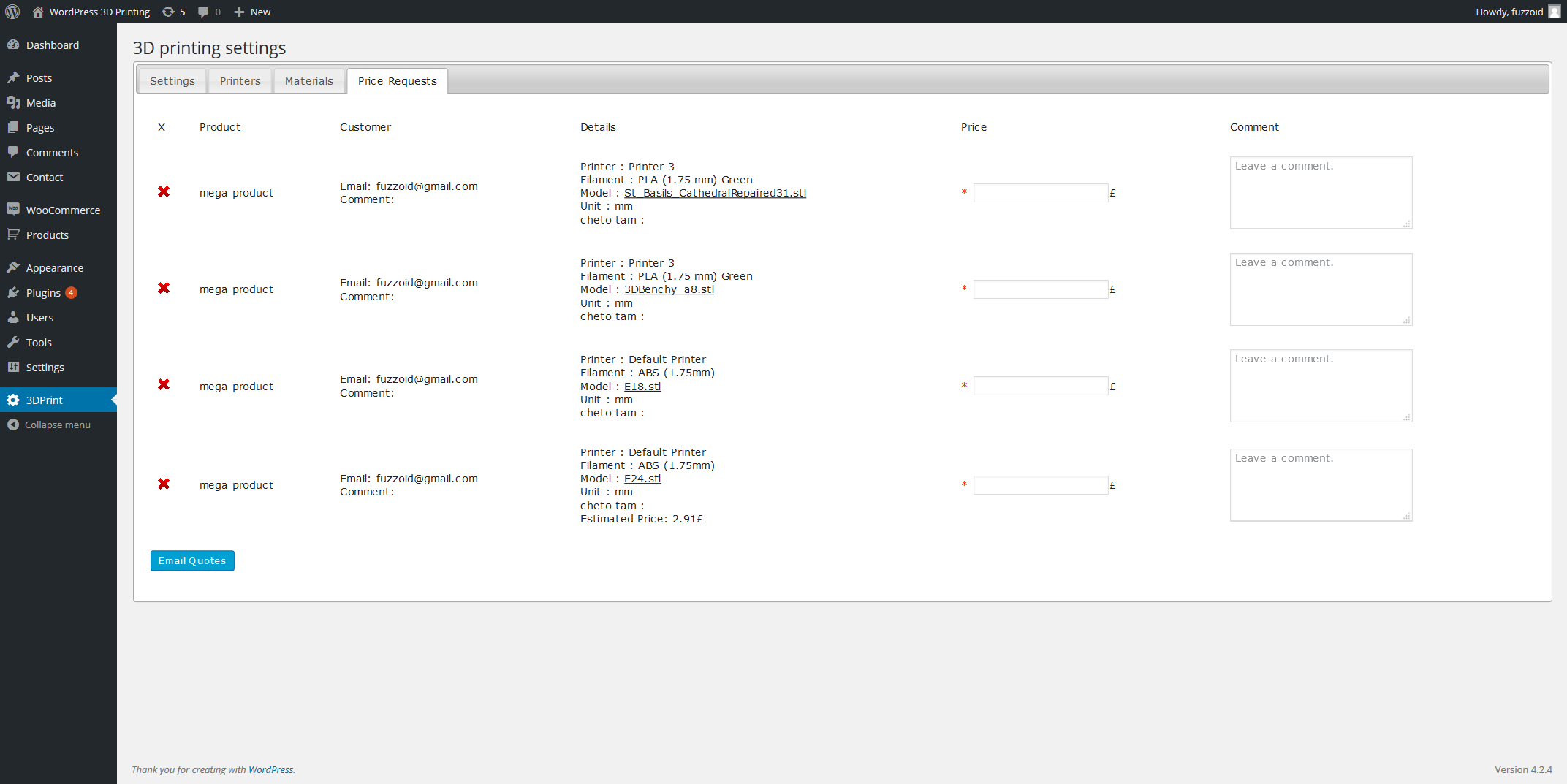

Wordpress 3D Printing Backend: Price Request Manager

Backend

Wordpress 3D Printing Backend: price request manager.

F.A.Q.

‐What do I get if I buy the plugin?

Zip file with the plugin, free updates and free support. Free support is offered for one website.

‐What do I get if I buy the subscription?

You can activate plugin's special features: infill, support material, print time calculation.

‐How do I create a 3D printing product?

In this video you can see how to set up a 3D printing product.

‐What's the shortcode for the premium plugin?

The plugin has "Shortcode Generator" submenu where you can generate the shortcode for single upload and bulk upload modes.

Also you can use woocommerce product_page shortcode. To be able to use it you need to check "Load Everywhere", on the plugin settings page, "Other" tab.

‐How is the printing price calculated?

Generally the formula is: printing price = printer charges + material charges + coating charges + post-processing charges(+ optional custom charges). Printer, material, coating and post-processing charges are calculated depending on the plugin settings. The total cost can be calculated through material volume, material weight, bounding box, surface area, print time and more.

‐How are infill, print time and support material calculated?

They are calculated by Cura 3.4 running on a remote server. At the plugin backend you need to configure following parameters: layer height, wall thickness, nozzle size, infill %, print speed, travel speed, support material.

‐How does the subscription work?

The subscription is needed to enable infill and support material calculation. When you order a subscription you have an option to make it recurring. It can be cancelled or renewed any time.

‐Can I get a trial period for the subscription?

Yes, first 30 models are free by default.

‐Does the plugin pass model's dimensions and weight to shipping modules?

Yes, but weight works only with shipping modules which calculate weight through the shopping cart. I haven't tested all of them, but here's a few modules that work: Table Rate Shipping for WooCommerce
, Table Rate Shipping Method for WooCommerce by Flexible Shipping

‐How do I set up a minimum price for small models?

On the product page open Variations tab, expand the current variation and set "Regular Price".

‐How do I set up different price rates for different amounts of material and volume?

For example you want to charge 0.5$ for < 200cm3, 0.4$ for >200cm3, 0.3$ for >400cm3. Instead of regular numeric price enter this formula: 0:0.5;200:0.4;400:0.3
The price and amount are delimted by ":" symbol and price-amount pairs are delimited by ";". This works on printer, material, coating and post-processing prices.

‐Does the plugin check models for printability?

The current version only checks if the model is larger than the selected printer build tray size.

‐Can I add custom attributes with custom price?

Yes, through the standard WooCommerce facility - http://docs.woothemes.com/document/variable-product/.
Also you can set the attribute price on Products->Attributes page. The price can be flat or a percentage of the total, printing/material/coating price or material amount. It can also be a negative value. Video instructions on how to set up the price is here.

‐How do I assign a printer/material to a product?

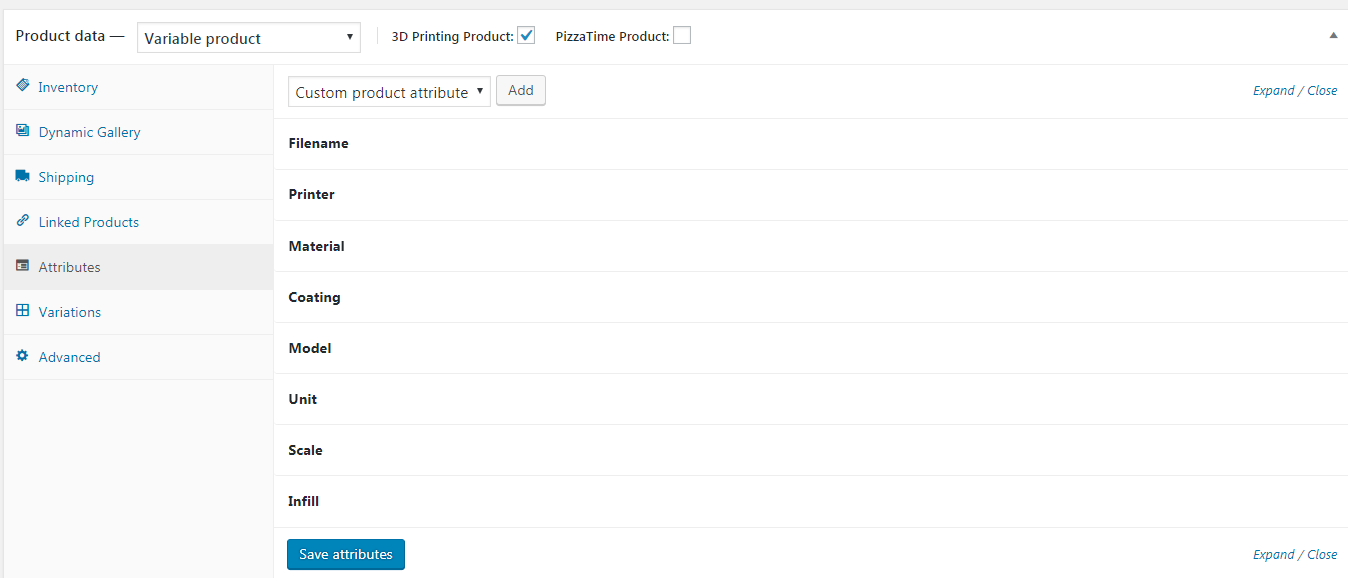

By default all printers and materials are assigned to products marked as 3D Printing Product. At the attributes tab you can see "all" value against "Printer" and "Material". If you want to assign only one printer to a product - delete "all" and type the printer id in that field. IDs can be seen at the Printers and Materials tabs of the plugin's settings page.

‐How do I group printers/materials/coatings/post-processings?

Give them the same Group Name.

‐How do I sort printers/materials/coatings/post-processings?

Sort Order field determines the order, low numbers go first. Groups at the moment are sorted alphabetically.

‐How do I add a predefined model to a product?

Go to WooCommerce->Settings. Open "Products" tab. Click on "Downloadable products". Set "File Download Method" to "Redirect only"

Create a "3D printing product" by following installation instructions in the documentation.

Save the product.

Open "Variations" tab. Expand the variation by clicking "Expand" link.

There you will see "Predefined Model" field.

Upload or select an existing file by clicking on "Choose file" button.

Save.

‐How do I configure Ninja Forms integration and put the form on a certain page?

Please follow this guide step by step. Every step is mandatory.

Create a 3DPrint product according to this video

Make sure that "Checkout" setting in 3DPrint settings is set to "Request price"

Now you can use Shortcode Generator (check 3DPrint submenu in the admin area)

Put the shortcode you created on the previous step on any page you want.

Configure Ninja Forms integration as shown on this video

‐How do I translate the plugin?

The easiest way is to use this plugin https://wordpress.org/plugins/loco-translate/

‐I installed the script, but something is not working right..

Try to deactivate/activate the plugin.

Try to uncheck "3D Printing Product" checkbox, save the product, again check "3D Printing Product" and save.

Try to create a new product attribute on Products -> Attributes (this will reset the attribute cache).

If you use any cache plugin on the site try to empty it's cache.

Check the browser's console (F12) for JS errors. There might be a conflict with other plugins.

Try to deactivate other plugins one by one (especially those which can alter the product's price, e.g. discount plugins)

Also try clearing your browser's cache.

If that doesn't work feel free to contact me, I'll be happy to help.

Contact Us

Changelog

Posted on July 29, 2015 by fuzzoid

06.09.2024 – 3.7.6.2 release

Bulk mode: zip files can be uploaded (1 model per zip)
Bugfix: incorrect price in the cart for DXF files
WooCommerce 9.2 tested

22.08.2024 – 3.7.5.9 release

Bugfix: select2 script is enqueued properly

20.08.2024 – 3.7.5.8 release

Option to show the price request form if DXF total path is 0
Bugfix: double price request with the template addon
Bugfix: missing Ninja Forms submission with the template addon
Bugfix: infill float value miscalculation
Minor bugfixes

11.07.2024 – 3.7.4.1 release

G-Code URL added to: order details, price requests, e-mail templates
DropDown (New) menu is collapsible on item selection
Bugfix: clear cookies if a model is not found
Bugfix: automatically hide empty groups in Colors layout
WooCommerce 9.1 tested

27.05.2024 – 3.7.2.7 release

File Manager has received security updates and has been reintroduced as an addon
Printers now have the startup price “per cart” option
Shopping cart layout fix for WooCommerce block themes
Bulk mode layout fix
“Select a Post-processing” string is now translatable
WooCommerce 8.9 tested

25.02.2024 – 3.6.9.4 release

[estimated_price_total] shortcode has been added to e-mail templates
Slicer is configurable per printer
Startup price is configurable per printer
Startup price is configurable per material
Material edit page – added coating, printer and post-processing dropdowns
WooCommerce 8.6 tested

22.01.2024 – 3.6.6.3 release

Currency rate bugfix
Scale bugfix
WooCommerce 8.5 tested

30.12.2023 – 3.6.5.9 release

PostProcessing settings – single/multiple
DXF material glow bugfix
Laser cutting: preview image max-height 500px CSS fix
Laser cutting: preview image line thickness increased by x1.5
WooCommerce 8.4 tested
DropBox addon and a few of free addons are available here

05.12.2023 – 3.6.4.6 release

Backend setting -> Other -> Out of stock fix
woocommerce_cart_calculate_fees fix
WooCommerce 8.3 tested

28.10.2023 – 3.6.4.2 release

Prusa Slicer 2.6.1
HPOS compatibility
Bugfix: multiple file drag-n-drop
Bugfix: price display without API on finished repair
WooCommerce 8.2 tested

13.09.2023 – 3.6.2 release

Romanian language bugfix
Lists layout: cyan border around the selected material/color
WooCommerce 8.1 tested

29.08.2023 – Server changes

Bugfix: repair function now works corrrectly if model position optimization is enabled.

26.08.2023 – 3.6.1.8 release

Android upload bugfix
Double quantity bugfix
WooCommerce 8.0 tested
WordPress 6.3 tested

12.05.2023 – 3.6.1.5 release

Scaling bugfix
WooCommerce 7.7 tested

23.04.2023 – 3.6.1.3 release

iPhone upload bugfix

30.03.2023 – 3.6.1.1 release

Language update
Setcookie bugfix

16.03.2023 – 3.6.1 release

Added [thumbnail_url] shortcode to e-mail templates
Bulk file upload: files are filtered by extensions
p3d_do_housekeeping function bugfix
Fullscreen bugfix
WooCommerce 7.5 tested

12.02.2023 – 3.5.9.3 release

Postprocessing – Support Material option
Postprocessing – dropdown layout bugfix
Bulk mode – inactive buttons are transparent
Scaling controls – option to disable scaling on keypress
Server changes: improved API stability
